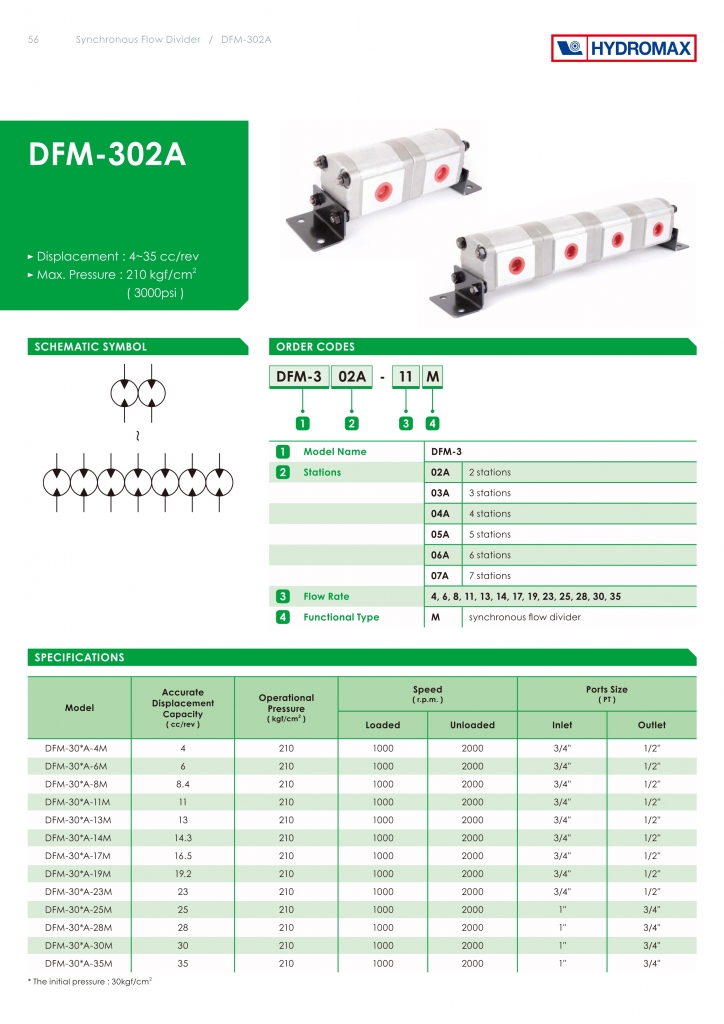

DFM-302A

DFM-302A

提到HYDROMAX齒輪泵，如虹精工(廈門)電子科技有限公司可以了解一下。如虹精工專業銷售新鴻齒輪泵!誠信經營!歡迎咨詢,我們將誠摯為您服務. 如虹精工為您提供最新的HYDROMAX油泵詳細參數、新鴻油泵實時報價、新鴻液壓泵庫存情況等

ORDER CODES

Model Name DFM-3
Stations 02A 2 stations
03A 3 stations
04A 4 stations
05A 5 stations
06A 6?stations
07A 7 stations
?Flow Rate 4,6,8,11,13,14,17,19,23,25,28,30,35
Funtional Type M synchronous flow divider

SPECIFICATIONS

Model Accurate Operational
Pressure
(kgf/cm2)		 Speed (r.p.m)
Displacement Port Size （PT）
Capacity
(cc/rev) normal Loaded Unloaded
DFM-30 * A-4M 4 210 1000 2000 3/4“ 1/2“
DFM-30 * A-6M 6 210 1000 2000 3/4“ 1/2“
DFM-30 * A-8M 8.4 210 1000 2000 3/4“ 1/2“
DFM-30 * A-11M 11 210 1000 2000 3/4“ 1/2“
DFM-30 * A-13M 13 210 1000 2000 3/4“ 1/2“
DFM-30 * A-14M 14.3 210 1000 2000 3/4“ 1/2“
DFM-30 * A-17M 16.5 210 1000 2000 3/4“ 1/2“
DFM-30 * A-19M 19.2 210 1000 2000 3/4“ 1/2“
DFM-30 * A-23M 23 210 1000 2000 3/4“ 1/2“
DFM-30 * A-25M 25 210 1000 2000 1“ 3/4“
DFM-30 * A-28M 28 210 1000 2000 1“ 3/4“
DFM-30 * A-30M 30 210 1000 2000 1“ 3/4“
DFM-30 * A-35M 35 210 1000 2000 1“ 3/4“
