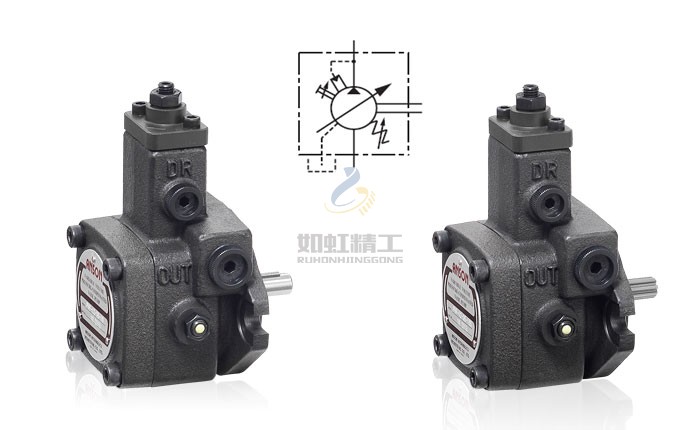

可變吐出量葉片泵
PVF系列 單泵型號說明
| PVF | -12 | -70 | -10 | S | ||
|---|---|---|---|---|---|---|
| 機殼號 | 吐 出 量 （at 3.5bar，1800 r/min） |
壓力調整範圍 | 記 號 | 調整範圍 | ||
| 記 號 | 吐 出 量 L/min (幾何排量 cm3/rev) |
記 號 | 調整範圍 (bar) |
|||
| PVF: 法蘭型式 |
8 | 8(5) | 20 | 8~20 | 10 | 無記號: 半圓鍵心軸S: 鍵心軸 |
| 12 | 12(7) | |||||
| 35 | 15~35 | |||||
| 15 | 15(8) | |||||
| 20 | 20(12) | 55 | 30~55 | |||
| 30 | 30(16) | 11 (PVF-30/40) |
||||
| 70 | 50~70 | |||||
| 40 | 40(22) | |||||
| 出廠時吐出量設定?Q?max. | 出廠時壓力設定P?min. | |||||
※?泵轉速限制
最低轉速：800 r/min
最高轉速：1800 r/min
安頌變量葉片泵PVF-8,PVF-12,PVF-15,PVF-20,PVF-30,PVF-30系列型號參考:PVF-40-70-10S , PVF-30-70-10S , PVF-20-70-10S , PVF-15-70-10S , PVF-12-70-10S , PVF-8-70-10S , PVF-40-55-10S , PVF-30-55-10S , PVF-20-55-10S , PVF-15-55-10S , PVF-12-55-10S , PVF-8-55-10S , PVF-40-35-10S , PVF-30-35-10S , PVF-20-35-10S , PVF-15-35-10S , PVF-12-35-10S , PVF-8-35-10S , PVF-40-20-10S , PVF-30-20-10S , PVF-20-20-10S , PVF-15-20-10S , PVF-12-20-10S , PVF-8-20-10S , PVF-40-70-10 , PVF-30-70-10 , PVF-20-70-10 , PVF-15-70-10 , PVF-12-70-10 , PVF-8-70-10 , PVF-40-55-10 , PVF-30-55-10 , PVF-20-55-10 , PVF-15-55-10 , PVF-12-55-10 , PVF-8-55-10 , PVF-40-35-10 , PVF-30-35-10 , PVF-20-35-10 , PVF-15-35-10 , PVF-12-35-10 , PVF-8-35-10 , PVF-40-20-10 , PVF-30-20-10 , PVF-20-20-10 , PVF-15-20-10 , PVF-12-20-10 , PVF-8-20-10 , PVF-40-70-11S , PVF-30-70-11S , PVF-40-55-11S , PVF-30-55-11S , PVF-40-35-11S , PVF-30-35-11S , PVF-40-20-11S , PVF-30-20-11S , PVF-40-70-11 , PVF-30-70-11 , PVF-40-55-11 , PVF-30-55-11 , PVF-40-35-11 , PVF-30-35-11 , PVF-40-20-11 , PVF-30-20-11
