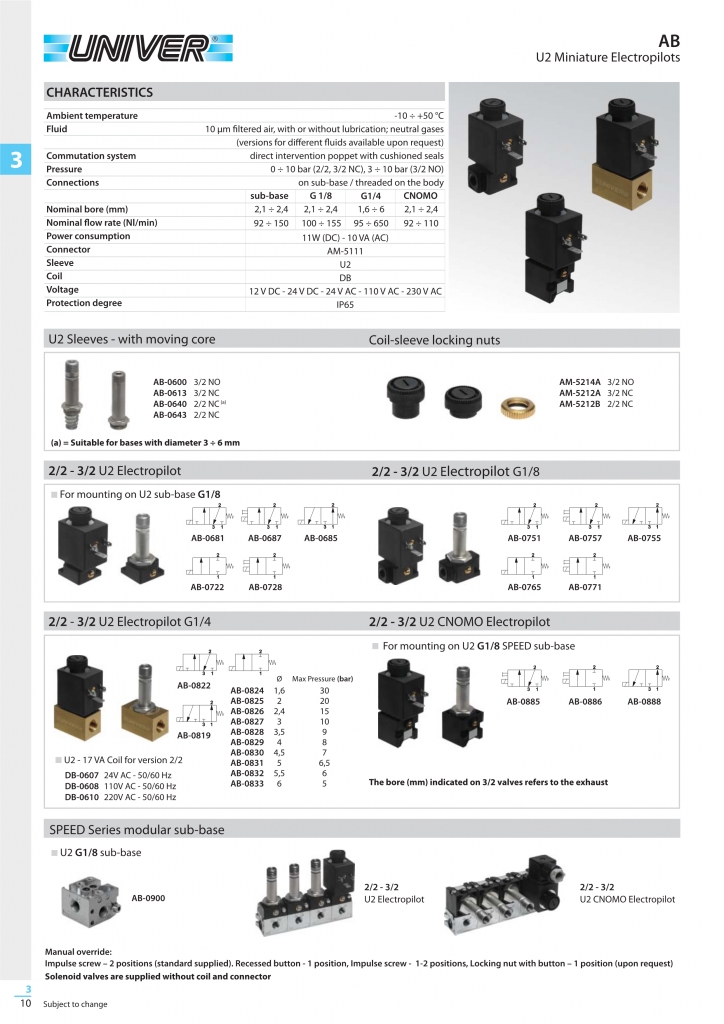

U2 miniature electropilots 2/2 – 3/2
The constant quality, original design, wide range, and the right quality-price ratio comply with all possible needs of the user. Careful choice of materials reduce residual magnetism to a minimum and eliminate seal swelling.
The availability of sub-bases (“SPEED” series) allows quick manifold connection of these solenoid valves, increasing?their versatility and field of application.
| Body | Zamak and brass; stainless steel |
| w | upon request |
| Working pressure | NO 3÷10 bar NC 0÷10 bar |
| Ambient temperature | -10 ÷ 50 °C |
| Fluid | filtered air 50 ìm, lubricated or non |
| w | lubricated, neutral gas |
| System | system with cushioned seals |
| w | on sub-bases or with threaded |
| Core | stainless steel |
| Sleeve | treated brass |
| Springs | stainless steel |
| Seals | nitrile rubber |
| Flow rate | 29÷80 Nl/min. (U1) |
| w | 92÷210 Nl/min. (U2) |
| Coils | DA…/DB…/DC… series |
AB-0900 , AB-0888 , AB-0886 , AB-0885 , AB-0771 , AB-0765 , AB-0755 , AB-0757 , AB-0751 , AB-0833 , AB-0832 , AB-0831 , AB-0830 , AB-0829 , AB-0828 , AB-0827 , AB-0826 , AB-0825 , AB-0824 , AB-0728 , AB-0722 , AB-0685 , AB-0687 , AB-0681 , AB-0643 , AB-0640 , AB-0613 , AB-0600
